05.06.2018

For the trouble-free operation of robots

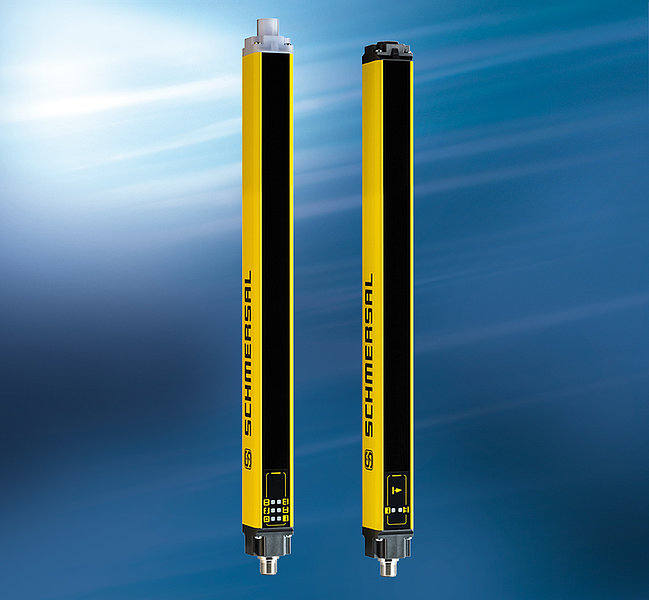

Safety light curtains with multiple scans increase machine availability

Wuppertal, 5th June 2018. At Automatica 2018, the Schmersal Group will present safety light grids and safety light curtains from the product series SLC/SLG 445, which due to their integrated multiple scan function, are suitable for demanding environmental conditions, in particular also for welding robots. With these non-contact protective devices, a protective field composed of infrared beams is emitted by the transmitter and evaluated by the receiver. In the case of the SLC/SLG 445, multiple scanning evaluates each infrared beam six times in succession within the reaction time. This increases the response time from 10 to 20 ms.  The advantage: Brief interruptions of individual beams in the protective field - e.g. due to small particles, chips or, in the case of welding robots, due to glow sparks or the influence of high light energy - do not automatically result in the protective device being switched off. The multiple scan thereby contributes to increased machine availability.
Due to the multi-scan function for the prevention of interferences, the SLC/SLG 445 product series is an excellent safety solution also for areas of application with high contamination, such as wood or stone processing, outdoors where there are insects and birds, or for work areas in which water vapour and splash water are commonplace, for example in food processing.
Another advantageous product feature of this series is the integrated muting function, which distinguishes between human and material and hence also contributes to increased productivity. In addition, the SLC/SLG 445 offers an integrated setup aid with status display. It indicates to the installation personnel whether the emitting and receiving units are precisely aligned with one another. This reduces the assembly effort and lowers the installation costs.These and many other useful functions of the SLC/SLG 445 can be configured quite simply and without software and so offer a high degree of adaptability for flexible machine concepts. Efficient protection of robot workstations
Opto-electronic protective devices are a space-saving and economical solution for protecting robot workstations. Safety light grids and safety light curtains allow a clear view of the process and offer additional productivity-enhancing functions. Moreover, robot systems are often walkable. Measures must therefore be taken to prevent hazardous movements from starting while persons are in the hazardous area. The integrated "double acknowledgement" function of the SLC/SLG 445 product series prevents unintentional restart of the machine in difficult-to-see production areas. Visit Schmersal from June 19-22, 2018 at the "Automatica" in Munich, Hall B6, Stand 328
